EDFA Edu-Kits are designed to expedite the development of the necessary hands on practical skills and to experimentally demonstrate basic principles of EDFA.


-EDFA Educational Kits-


The objectives of the EDFA Edu-Kits are:

  • to learn the operation principle of EDFA
  • to introduce the components of EDFA - pump laser, wavelength division multiplexers, Erbium-doped fiber and optical isolators
  • to construct a fully functional Erbium-doped fiber amplifier
  • to experimentally assess the performance of the EDFA in terms of noise figure, gain and saturation output power

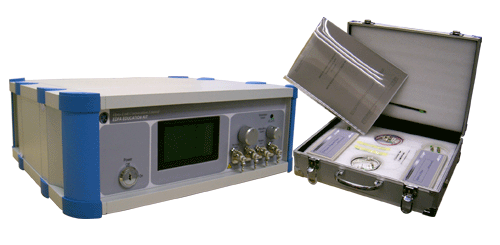

Equipment / Components for EDFA Edu-Kits
  • 1 Benchtop Unit Containing a FBG-Stabilized 980nm Pump Laser, a 1550nm DFB laser and a Receiver and a Variable Optical Attenuator
  • 2 Optical Isolators
  • 1 Erbium-Doped Fiber Module
  • 1 Optical Bandpass Filter Module
  • 1 Wavelength Division Multiplexer (WDM)
  • 6 FC/APC Adaptors
  • 1 Instruction Manual for Benchtop Unit
  • 1 Teaching Manual for EDFA Experiment

* Opto-Link Corporation Ltd reserves the right to make changes to the products described herein without notice.
