-Single Mode Optical Switch (Module)-
| Features |
| On/Off, Add/Drop or Full Configuration |
| Compact Package or Benchtop Package |
| Latching or Non- Latching available |
| Applications |
| Optical Add/Drop |
| Fiber optic ring protection |
| Optical cross connection |
 |
| Specifications (Optical Switch) |
| 1x1, 1x2, 2x2 Optical Switch |
|
Parameter |
Value | Units | |||
| Operating Wavelength | 1260~1360 or 1510~1610 | nm | |
||
| Switch Type | 1x1 (On - Off), 1x2 | 2x2, 2x2B | -- | ||
| Insertion Loss | Max. | 0.6 | 0.8 | dB | |
| Return Loss | Min. | 45 | dB | ||
| Cross Talk | Min. | 55 | dB | ||
| PDL | Typ. | 0.05 | dB | ||
| Repeatability | Max. | +/-0.05 | dB | ||
| Life Time | Min. | 1,000,000 | Times | ||
| Switch Speed | Max. | 10 | ms | ||
| Switch Mode | Bistable Relay | -- | |||
| Operating Temperature | -5 to +70 | ºC | |||
| Storage Temperature | -40 to +85 | ºC | |||
| Voltage | 5+/-0.5V DC or 5V Pulse | V | |||
| Current | 40+/-4 | mA | |||
| Dimensions | 45x18x10 | mm | |||
| 1x4, 4x4 Optical Switch |
|
Parameter |
Value | Units | |||
| Operating Wavelength | 1310, 1550, 1310/1550 | 1550+/-50 | nm | |
|
| Switch Type | 1x4 | 4x4 | -- | ||
| Insertion Loss | Max. | 1.5 | 2.5 | dB | |
| Return Loss | Min. | 50 | dB | ||
| Cross Talk | Min. | 60 | dB | ||
| Repeatability | Max. | +/-0.08 | +/-0.05 | dB | |
| Life Time | Min. | 1,000,000 | Times | ||
| Switch Speed | Max. | 10 | 20 | ms | |
| PDL | Typ. | 0.05 | dB | ||
| Operating Temperature | 0 to +70 | ºC | |||
| Storage Temperature | -40 to +85 | ºC | |||
| Voltage | 5+/-0.5V DC |
V | |||
| Current | 40+/-4 | 200+/-20 | mA | ||
| Dimensions | 134x90x18 | 153x125x20 | mm | ||
|

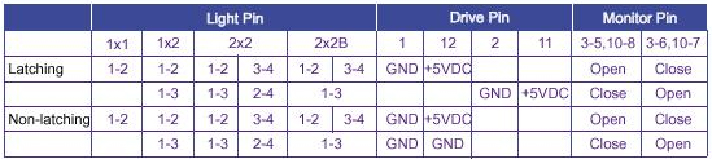

850nm Series |
|
Parameter |
Value |
Units |
|
||
|
Switch Type |
1x1, 1x2, 2x2, 2x2B |
-- |
|
||
|
Wavelength |
1310 or 1550 (SM) |
1310 & 1550 (SM) |
850 or 1310 (MM) |
nm |
|
|
Insertion Loss |
Typ: 0.5 Max: 0.8 |
Typ: 0.7 Max: 1.0 |
Typ: 0.5 Max: 0.8 |
dB |
|
|
Return Loss |
>45 |
>45 |
>25 |
dB |
|
|
Cross Talk |
>55 |
>55 |
>30 |
dB |
|
|
Repeatability |
<+/- 0.05 |
dB |
|||
|
Switch Time |
10 |
Ms |
|||
|
Lifetime |
>1,000,000 |
Time |
|||
|
Switch Mode |
Latching or Non-latching |
-- |
|||
|
Operation Temperature |
-15 ~ +70 |
ºC |
|||
|
Storage Temperature |
-40 ~ +85 |
ºC |
|||
|
Drive Voltage |
5+/-0.5DC or 5V Pulse |
V |
|||
|
Work Current |
<50 |
mA |
|||
|
Package |
45x18x10 |
mm |
|||
 |
|||||
| * The specification is for the Optical Switch without connector. | |
| Wavelength | Ports | Remarks | Datasheet | ||||||||||
| 532~980, 1260~1620 nm | 4x4 |
|
|||||||||||
| 1260~1360, 1510~1610 nm | 1x1, 1x2, 2x2 |
|
|||||||||||
| 1280~1340, 1520~1625 nm | 2x2 |
|
|||||||||||
| 1310, 1550, 1310/1550 | 1x4 |
|
|||||||||||
| 1310, 1550, 1310/1550 nm | 2x4 |
|
|||||||||||
| 1310/1550 nm | 4x4 |
|
|||||||||||
| 1510~1590 | 4x4 |
|
|||||||||||
| For customized specification on the Optical Switch, please contact us at contact@optolinkcorp.com. | |
| Ordering Codes |
OLSW - [Type] - [Model] - [Wavelength] - [Fiber Diameter] - [Fiber Length] - [Connector Type] - [Latching/ Non-latching] |
| Type | Code | Model | Code | Wavelength | Code | Fiber Diameter | Code | Fiber Length | Code | Connector Type | Code | Latching/ Non-latching | Code |
| Module | - |
1x1 |
11 |
850nm | 085 | 250um | 25 | 1m | 1 |
No Connector |
NC |
Latching | L |
1x2 |
12 |
1310nm | 131 | 900um | 90 | Others | X |
FC/APC |
FA |
Non-latching | NL | ||
1x4 |
14 |
1550nm | 155 | Others | XX | Rackmount | - |
FC/PC |
FP |
||||
2x2 |
22 |
1310/1550nm |
135 |
Rackmount | - |
FC/UPC |
FU |
||||||
2x2 Block |
22B |
SC/APC |
SA |
||||||||||
4x4 |
44 |
SC/PC |
SP |
||||||||||
1xN |
1N |
ST/UPC |
ST |
||||||||||
SC/UPC |
SU |
||||||||||||
LC/PC |
LP |
||||||||||||
LC/UPC |
LU |
||||||||||||
MU/PC |
MP |
||||||||||||
| * Opto-Link Corporation Ltd reserves the right to make changes to the Optical Switch without notice. | |
|
|||
|
|||
